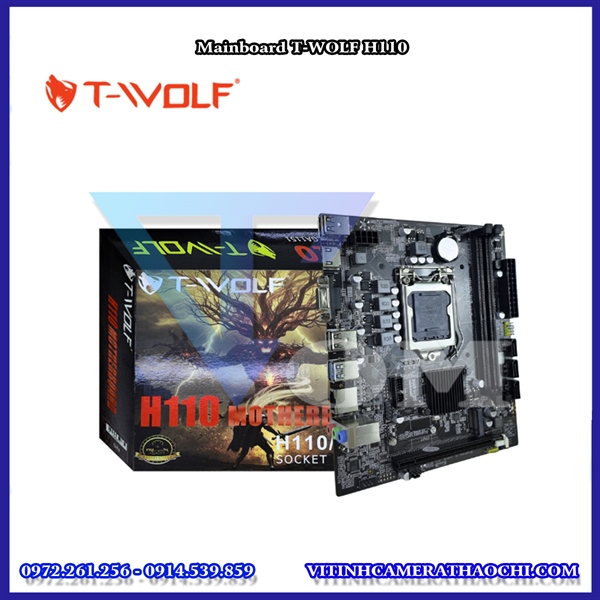

Mainboard T-WOLF H110
Số lượng
Mô tả chi tiết
Thông số kỹ thuật
| Thương hiệu | T-WOLF |
| Mã sản phẩm | TW-H110 |
| SKU | 686868110 |
| CPU | Supports 6/7/8th(SKYlake). Intel 14nm CPUs （LGA1151） |
| Chipset | Intel H110 Express Chipset |
| Memory | 2*240-pin DDR4 SDRAM slots |
| Memory up to 32GB | |
| Supports dual channal DDR4 1866/2133/2400/2666 MHZ | |
| I/O interface | 4xUSB2.0 |
| 2xUSB 3.0 | |
| 1x VGA port | |
| 1x HDMI port | |
| 1x RJ45 port | |
| 1x 3-in-1 Audio port(line in/line out/MIC in) | |
| Onboard interface | 1x 24-pin ATX power connector |
| 1x 4-pin ATX 12V power connector | |
| 2x USB connector, can support 2*USB 2.0 & 2*USB 3.0 | |
| 1x F-AUDIO connector | |
| 1x F-PANEL connector | |
| 1x F-SPEAKER connector | |
| 1x FAN connector | |
| 1x LPC-DEBUG connector | |
| Integrated Sound | Realtek ALC 6-channal HD Audio Codec onboard |
| Provides front audio interface | |
| Provides front stereo mic interface | |
| Storage | 3 x SATA 3.0 (6GB/s) ports |
| Integrated lan | Realtek 100/1000 Mbps LAN onboard |
| Expansion Slot | 1x PCI Express x16 slot,1x PCI Express x1 slot |
| 1x NVME/NGFF connector | |
| Dimension | Micro-ATX architecture(17*19cm) |
| Driver | https://drive.google.com/file/d/1gtTACiqNk53wbg9hDRNvCxlhhOGymDKt/view |
